ODMC-5CSB离线气箱脉冲控制仪
产品概述
ODMC-5CSB脉冲喷吹控制仪是脉冲袋式除尘器喷吹清灰系统的主要控制装置。它的输出驱动电磁脉冲阀，进而控制压缩空气对滤袋循序喷吹清灰，使除尘器的运行阻力保持在设定的范围内，以保证除尘器的处理能力和收尘效率。除尘器分为多个仓室，各个仓室逐个单独清灰，需要清灰的仓室停止过滤，脉冲控制仪输出电信号关闭该仓室的气缸提升阀.该仓室内电磁脉冲阀逐个喷吹清灰。
The pulsejet control device is the main control device of the pulse bag type dust collector. Its output electromagnetic drive pulse valve, so as to control the compressed air to bag sequential injection blowing, the running resistance of the dust remover to remain within the limits set, to ensure that the dust collector of the processing power and dust collection efficiency.Dust separator is divided into several storage compartments each compartment is individually clear ash, need to be clear of the warehouse to stop filtering, pulse control instrument output signal to close the chamber of the cylinder valve, the valve of the warehouse indoor electromagnetic pulse valve one by one.
压差清灰控制方式：以压差运行区间为主要控制方法:
定时清灰控制方式：以循环间隔延时为主要控制方法:
室间隔：一个单元(离线阀与脉冲阀)动作完成后到下一单元工作时间间隔;
脉冲等待：离线阀关闭或开启N秒后脉冲阀动作;(适用于离线气箱)
循环间隔：两个脉冲周期之间停顿的时间;
脉冲周期：控制仪完成所有电磁脉冲阀驱动输出所需要的时间;
脉冲间隔：相邻二个电磁脉冲阀输出驱动电压之间的间隔时间:
脉冲宽度：一个驱动电压所持续时间:
Differential pressure cleaning method: the main control method in the operating section of differential pressure;
Time cleaning control method: the main control method of the time delay of the cycle;
Room interval: a unit loff valve and valve) is performed to the next unit working time interval;
Pulse waiting: offline valve to close or open the N second after the pulse valve action; (applicable to off-line gas box)
Cycle interval: the time between the two pulse cycles;
Pulse period: the time required to complete all the electromagnetic pulse valve drive output;
Pulse interval: the interval between two adjacent electromagnetic pulse valve output driving voltage;
Pulse width: the duration of a driving voltage;

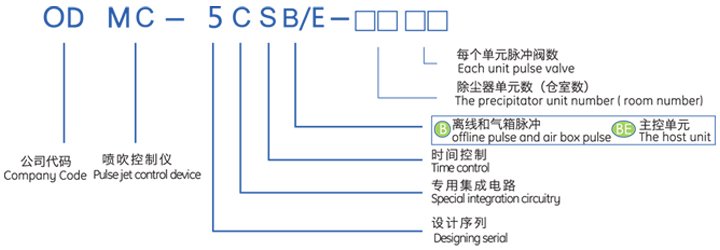

型号含义
注:1.订货代码:例如，ODMC-5CSB-0403;即表示除尘器有4个仓室，每个仓室内有3个脉冲阀。2.本型号控制仪可实现在线清灰、离线清灰、压差清灰。3. ODMC-5SCBE-XX为扩展单元控制仪:本主机单元采用液晶屏显示，可控制10个扩展子单元。
型号规格
| 主机型号规格 Model and Specifications | 输出位数 Output bits | 调节范围 Range of regulation |
| ODMC-5CSBE-2X | 2 | 1-2 |
| ODMC-5CSBE-4X | 4 | 1-4 |
| ODMC-5CSBE-6X | 6 | 1-6 |
| ODMC-5CSBE-8X | 8 | 1-8 |
| ODMC-5CSBE-10X | 10 | 1-10 |
| 扩展单元型号 Model and Specifications | 输出位数 Output bits | 调节范围 Range of regulation |
| ODMC-5CSB-10X | 10 | 1-10 |
| ODMC-5CSB-20X | 20 | 1-20 |
| ODMC-5CSB-36X | 36 | 1-36 |
| ODMC-5CSB-72X | 72 | 1-72 |
| ODMC-5CSB-144X | 144 | 1-144 |
*输出总位数=离线(提升)阀数+电磁脉冲阀数=1#扩展单元+2#扩展单元+3#扩展单元+……
*如果离线阀数+电磁脉冲阀数小于36个可直接选用扩展单元.无需购买主机
技术指标
| 额定输入电压 Input voltage | 220VAC(1±10%)50HZ-60HZ |
| 额定输出电压 Output voltage | 24VDC(或其它规格)(or another specification) |
| 额定输出电流 Rated output current | 1.5A |
| 控制提升阀与脉冲阀个数 Control of lifting valve and the number of pulse valve | 360（提升阀+电磁脉冲阀） |
| 脉冲等待 Pulse waiting | 10秒（即提升阀关闭或开启10后脉冲阀工作） |
| 输出脉冲宽度调节范围 Pulse width | 0.01-0.99秒（可调） |
| 输出脉冲间隔调节范围 Pulse intenal | 3~999秒（可调） |
| 脉冲周期（循环间隔） Pulse cycle(circulation interval) | 10~9990秒（可调） |
| 沉降时间调节范围 Settling time regulation range | 1~99秒（可调） |
| 室间隔时间调节范围 Room time interval adjustment range | 1~999秒（可调） |
| 使用环境 Working environment | -25℃~55℃ 空气的相对湿度不超过85%;无严重的腐蚀气体和导电尘埃; 无剧烈震动或冲击 |
| 外形尺寸 （主控单元、扩展单元） Size | 250×190×96mm |

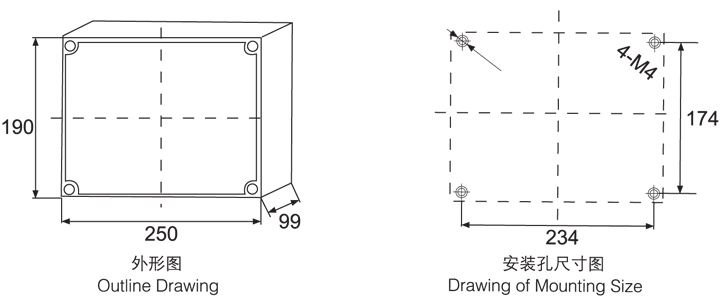

安装方式
