ODMC-8CSA第八代脉冲控制仪
产品概述
ODMC-8CS系列脉冲喷吹控制仪是欧顿公司设计的第八代单片机控制脉冲喷吹控制仪，实现按键参数设定、数码显示、各种参数可调等功能，操作简单，元器件均采用进口产品，质量稳定，是脉冲袋式除尘器喷吹清灰系统的主要控制装置，它的输出驱动电磁脉冲阀，进而控制压缩空气对滤袋循序喷吹清灰，使除尘器的定的范围内，以保证除尘器的处理能力和收尘效率。
ODMC-8CS pulse jet blowing control instrument for Orton company design of The eighth generation of the SCM control pulse jet blowing controller and achieve the key number set, digital display, various parameters can adjust function, the operation is simple, the components are used imported products, quality and stability is pulse bag type dust collector blowing ash system as the main control device, its output driving electromagnetic pulse valve, so as to control the compressed air to bag sequential injection blowing, dust collector fixed range, to ensure the dust remover's processing power and dust collection efficiency.
控制仪每次输出一位的驱动电压，一个驱动电压持续时间，称为脉冲宽度;
相邻二个输出驱动电压之间的间隔时间，称为脉冲间隔。
控制仪完成对所有位的电磁阀驱动输出所需要的时间，称为脉冲周期。
两个脉冲周期之间的停顿时间，称为循环间隔。
The control apparatus outputs a driving voltage at each time, a driving voltage duration, called the pulse width;
The interval between two adjacent outputs driving voltage, called the pulse interval.
The control system is completed on the time required for the output of all the solenoid valves to drive the output, called the pulse cycle
The pause time between the two pulses is called a cycle.

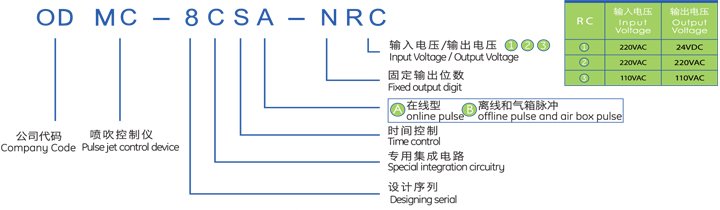

型号含义
使用技术指标
| 额定输入电压 Input voltage | AC220V(1±10%)50HZ-60HZ (或其它规格or another specification) |
| 额定输出电压 Output voltage | DC24V(或其它规格or another specification) |
| 额定输出电流 Rated output current | 1A |
| 耗电 Power consumption | ≤8W |
| 输出脉冲宽度调节范围 Pulse width | 0.02-0.12 sec |
| 输出脉冲间隔调节范围 Pulse intenal | 1~255 sec |
| 周期间隔调节范围 Cycle interval | 0~255min |
| 控制输入信号 Control signal | 开关触点Contact Switch(定时/差压) |
| 使用环境 Working environment | -25℃~+55℃ 空气的相对湿度不超过85%;无严重的腐蚀气体和导电尘埃; 无剧烈震动或冲击 |
型号规格
| 型号规格 Type | 输出位数 Output digits | 控制阀数量 Number of controlling valves | 外形尺寸Size(L×W×H) A:160×160×96 B:250×190×96 C:318×238×100 D:360×360×158 |
| ODMC-8CS-5 | 5 | 1~5任选 | A |
| ODMC-8CS-12 | 12 | 1~12任选 | A |
| ODMC-8CS-15 | 15 | 1~15任选 | B |
| ODMC-8CS-20 | 20 | 11~20任选 | B |
| ODMC-8CS-24 | 24 | 11~24任选 | B |
| ODMC-8CS-36 | 36 | 20~36任选 | B |
| ODMC-8CS-48 | 48 | 30~48任选 | B |
| ODMC-8CS-64 | 64 | 40~64任选 | C |
| ODMC-8CS-70 | 70 | 50~70任选 | C |
| ODMC-8CS-80 | 80 | 60~80任选 | C |
| ODMC-8CS-96 | 96 | 70~96任选 | C |
| ODMC-8CS-100 | 100 | 80~100任选 | D |
| ODMC-8CS-118 | 118 | 90~118任选 | D |
| ODMC-8CS-128 | 128 | 100~128任选 | D |

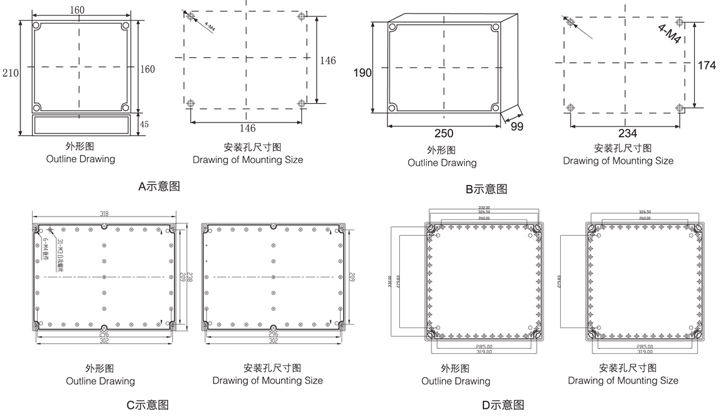

安装方式
